This machine adopts a bridge-type integrated structure, reasonableand stable structure, without disassembly, installation, and convenientmovement. Adopt high-precision linear square rail, high precision,good wear resistance and long service life. The machine headcan automatically rotate in parallel 0-45-90 o, 0-360 ,andcanautomatically perform 45-degree chamfering cutting.
The systemadopts a self-developed PLC programming system and a touchscreen operation interface, which is convenient, fast and user-friendly. High-power servo motors are used for front, rear, left, andright walking, with fast walking speed and high cutting accuracy.

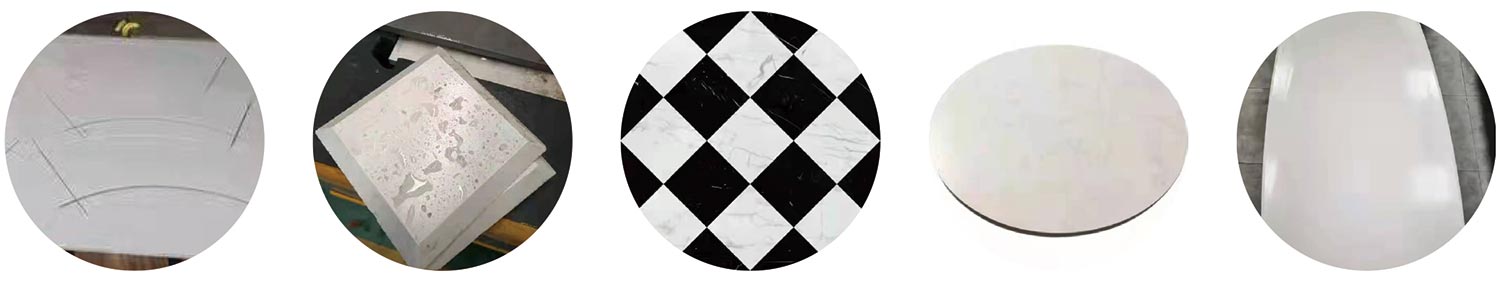

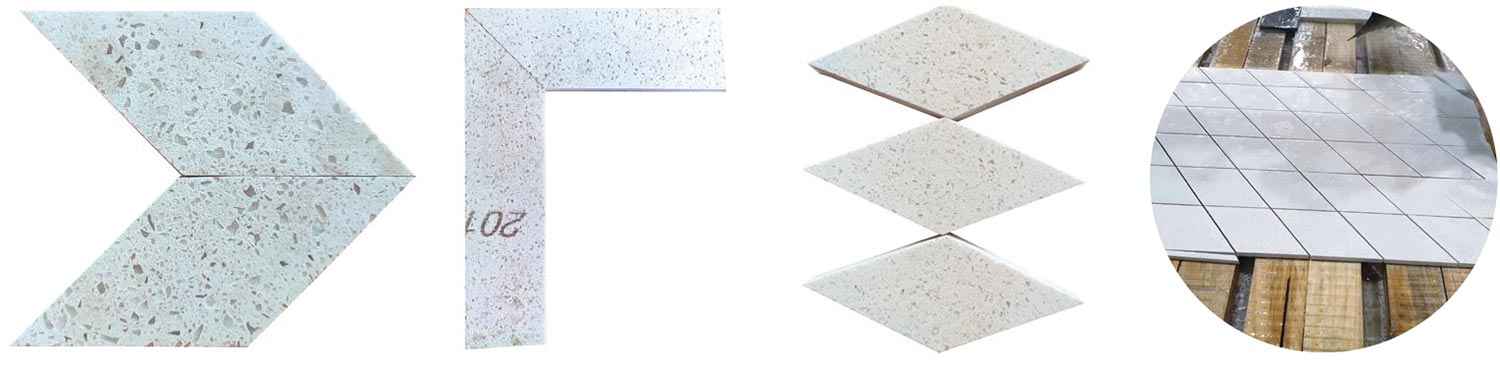

Theplatform can be tilted from 0 ° -89 °, which is convenient for placinglarge slabs. Four-axis integrated infrared stone cutting machine hasdiamond, special-shaped cutting and four-sided chamfering, non-marking cutting, horse belly, round, fan-shaped, oval, rectangular pothole.
The application range is wider and the practicability is stronger.It is especially suitable for special-shaped cutting of various types ofstone such as marble, granite, artificial stone, ceramics, and rock slabs.
| Model | Unit | CNC-DTQ400-3X | CNC-DTQ400-4X |
| Max.cuting size (L*W*H) | mm | 3200*1900*80 | 3200*1900*80 |
| Max.diameter of blade | mm | 400 | 400 |
| Working table size(L*W) | mm | 3200*1900 | 3200*1900 |
| Head rotation angle | n° | 0-90° | 0-360° |
| Turnover angle of worktable | n° | 0-89° | 0-89° |
| Chamfer angle | n° | 45° | 45° |
| Main motor power | kw | Standard: 11 kW | Optional: 15 kW | Standard: 11 kW | Optional: 15 kW |
| Water Consumption | m³/h | 2.5 | 2.5 |
| Installation size (L*W*H) | mm | 4950*2750*2700 | 5150*2950*2700 |
| Total weight | kg | 3500 | 3500 |
